Prevent layout shifts with CSS grid stacks

Published on October 27, 2020 · 12 min. read

There are two reasons why people use CSS grid:

  1. 😎 CSS is awesome! It's a fact, deal with it.
  2. 🛠️ Grid is a great tool to build complex two-dimensional layouts.

I sometimes have a third reason to use CSS grid: prevent layout shifts. I tried to find a fancy acronym for this technique but all I got was ALSGST: "Anti Layout Shift Grid Stacking Technique". I guess I won't be receiving many skill endorsements for "coining tech terms" on my LinkedIn profile so you better send me some suggestions.

Let me explain the technique using real examples. In this article, I'll cover:

Wait, what is a layout shift anyway?

A layout shift is what happens when an update in a web page causes something to move significantly. Most of the time, layout shifts occur during page load while the contents progressively renders. For example, when an image with an unspecified height gets inserted in the page, just before the very paragraph you were reading, the text moves away and it gets pretty frustrating. This is also very common when third party scripts (ad services or partnered contents) append new unknown elements in the page.

This article will focus on layout shifts occuring when toggling state on a UI component. I won't cover layout shifts happening during page load.

Let's get some context

I work for Clever Cloud, an IT automation platform. Our clients push their code and we handle the rest for them: build, deploy, host, scale, maintain, recover and so on. When they need to configure their applications, databases and other services, they use our web UI: "the console". I spend most of my time on this project and it looks like this:

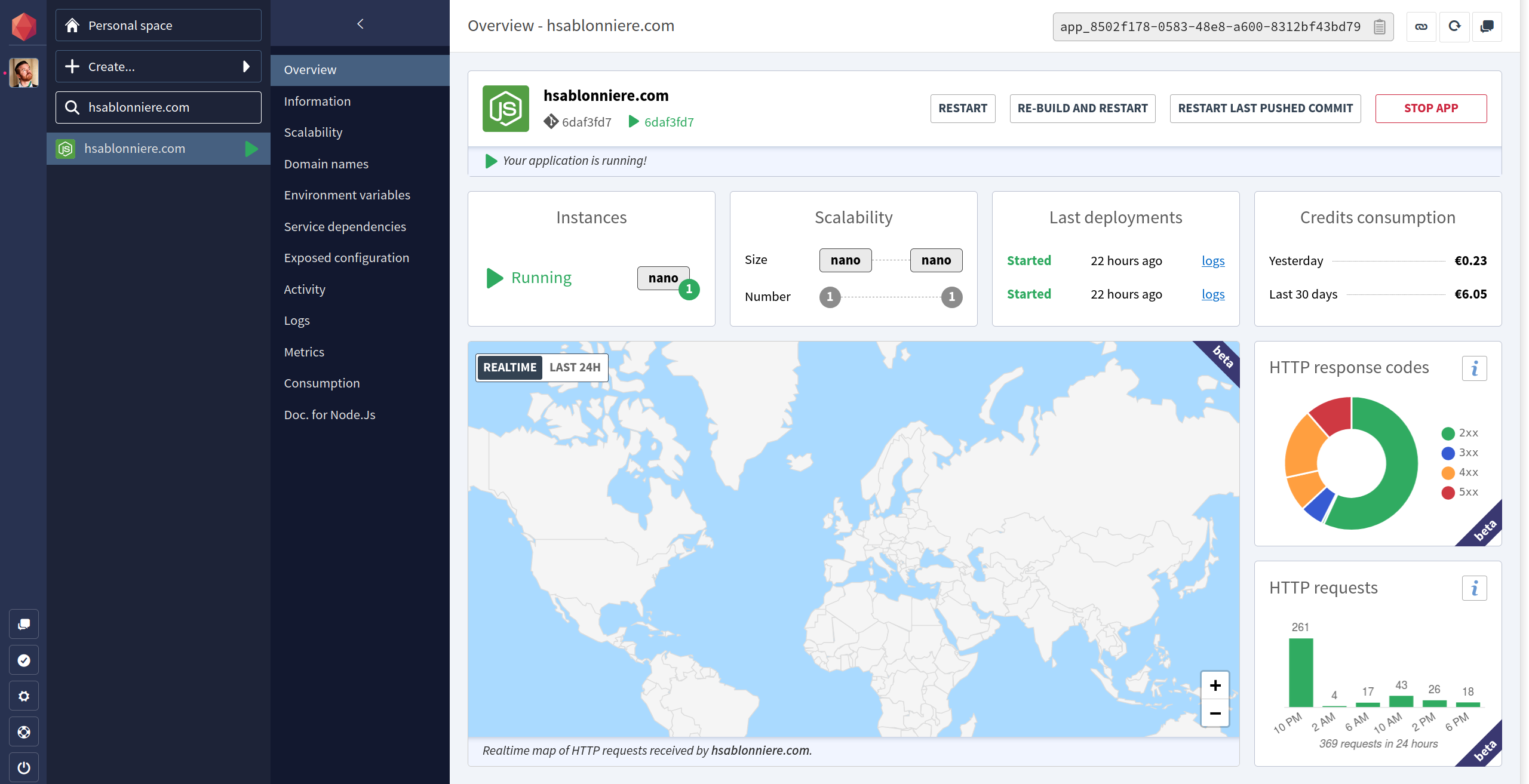

Screenshot of Clever Cloud's Web console displaying the overview of a Node.js application

What you see in the screenshot above is the overview of my own website, a Node.js application, hosted on our platform. On the right, you can see a pie chart representing the repartition of HTTP response codes returned by the application in the last 24 hours.

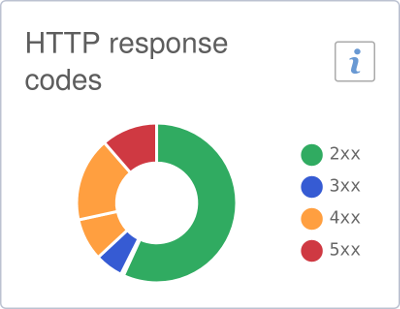

UI Component displaying a pie chart

When I worked on this component, I tried to keep things simple. I imagined our users would implicitly understand the chart is related to the current application. To unclutter the display, I decided to move some details like the exact number of requests in tooltips, accessible via mouse or touch. With the chart all cleaned up, I faced a problem. How would I explain the following details?

The available space was too small to add a detailed title at the top or bottom of the chart. So to help our users figure this out, I added an information button ℹ️ in the top right corner. When this button is clicked, the chart is hidden and a short text is displayed instead. It looks like this:

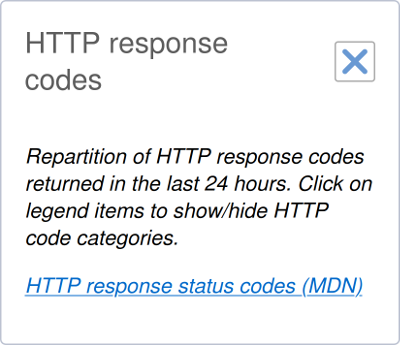

UI Component displaying a short text

When the close button is clicked, the short text is hidden and the chart displayed again. Implementing this toggle behaviour was not that hard. Let's take a simplified version of the template:

<div class="chart-component">
  <div class="title">
    HTTP response codes <button>toggle chart/info</button>
  </div>
  <div class="chart">
    <!-- chart here -->
  </div>
  <div class="info">
    <!-- short text here -->
  </div>
</div>

In this HTML, I can, when the button is clicked, simply toggle the component state between .chart and .info and hide the appropriate panel with display: none.

Layout shift problems

This approach has one big problem, it is subject to layout shifts.

Why is that?

When I work on such components, I tend to follow what I consider a good practice: don't set a fixed height on the component, let it adapt to its own content. This is even more important in this situation because I have no way to know how much space is needed to display the short text (without scrollbars). The minimum required height will depend on:

The result is, the component height is a bit smaller containing the chart than containing the short text.

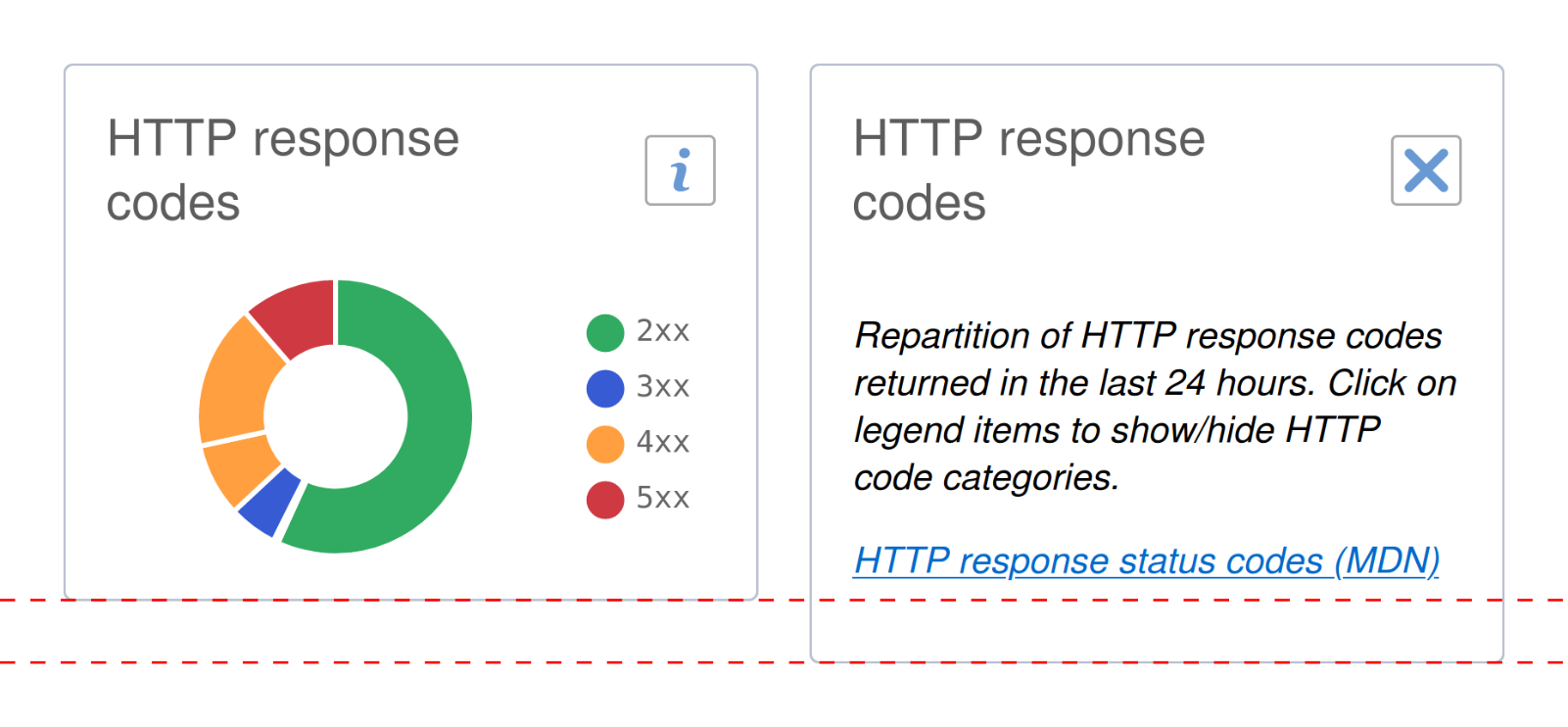

Two states of the same UI Component displayed side by side. Pie chart on the left, short text on the right. English version.

The issue is worse in French because the text is a bit longer:

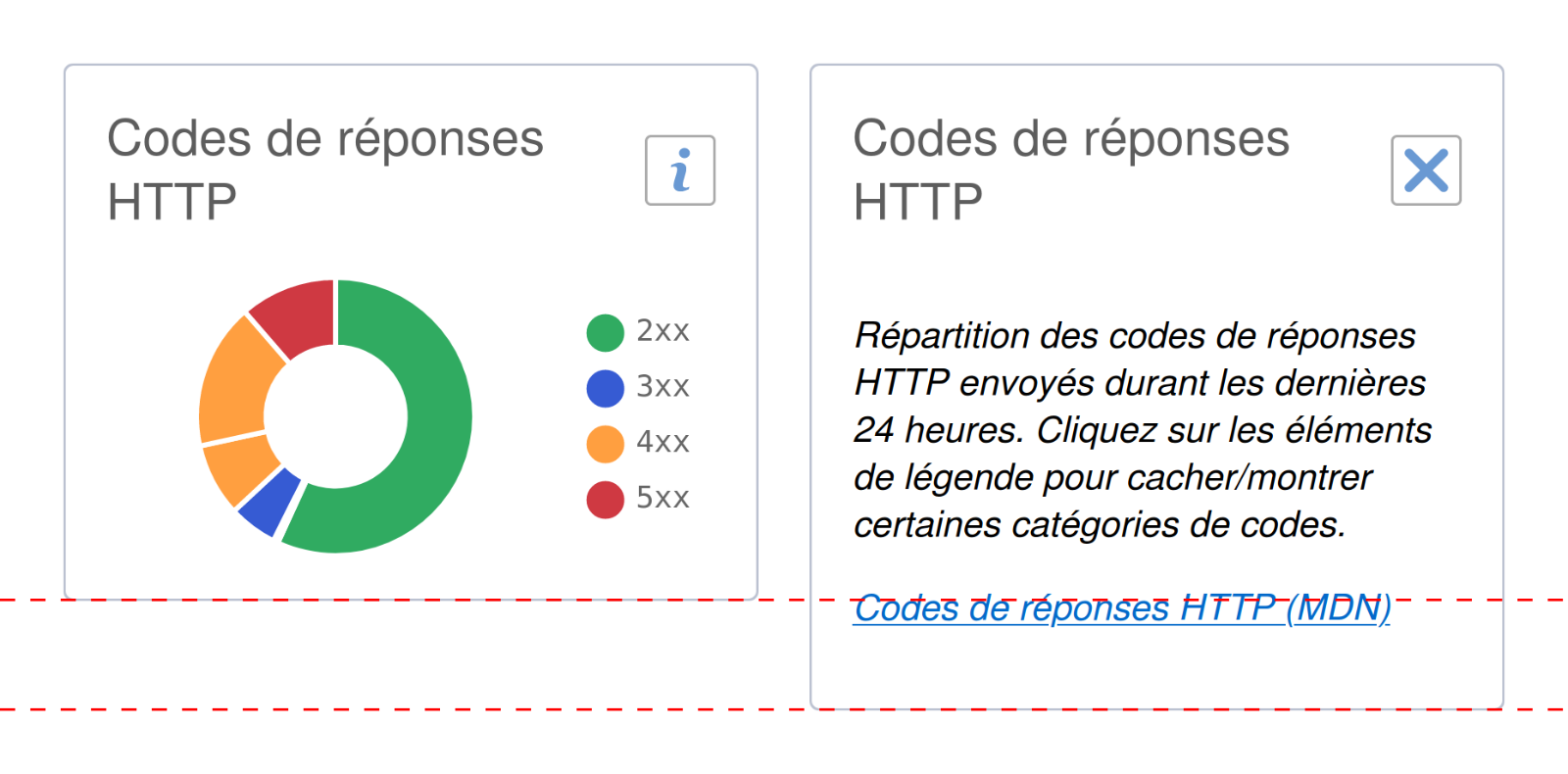

Two states of the same UI Component displayed side by side. Pie chart on the left, short text on the right. French version.

Depending on the situation, this innocent looking height change can have big impacts on the whole layout and the scroll position. This kind of details can drive your users crazy:

The video below shows what happens when I toggle between states.

You can observe a first layout shift when I go from "chart" to "info". The bar chart moves down and the map gets bigger.

Now look what happens when I scroll down the page and go back to the "chart" state. Look carefully at the mouse cursor. Once over the button, I don't move it, yet a simple click triggers a chain reaction:

Now, how can we prevent this layout shift from happening?

The absolute position solution

Before CSS grid, I would have solved this problem with the position CSS property.

First, I would use visibility: hidden instead of display: none to hide the "inactive" panel:

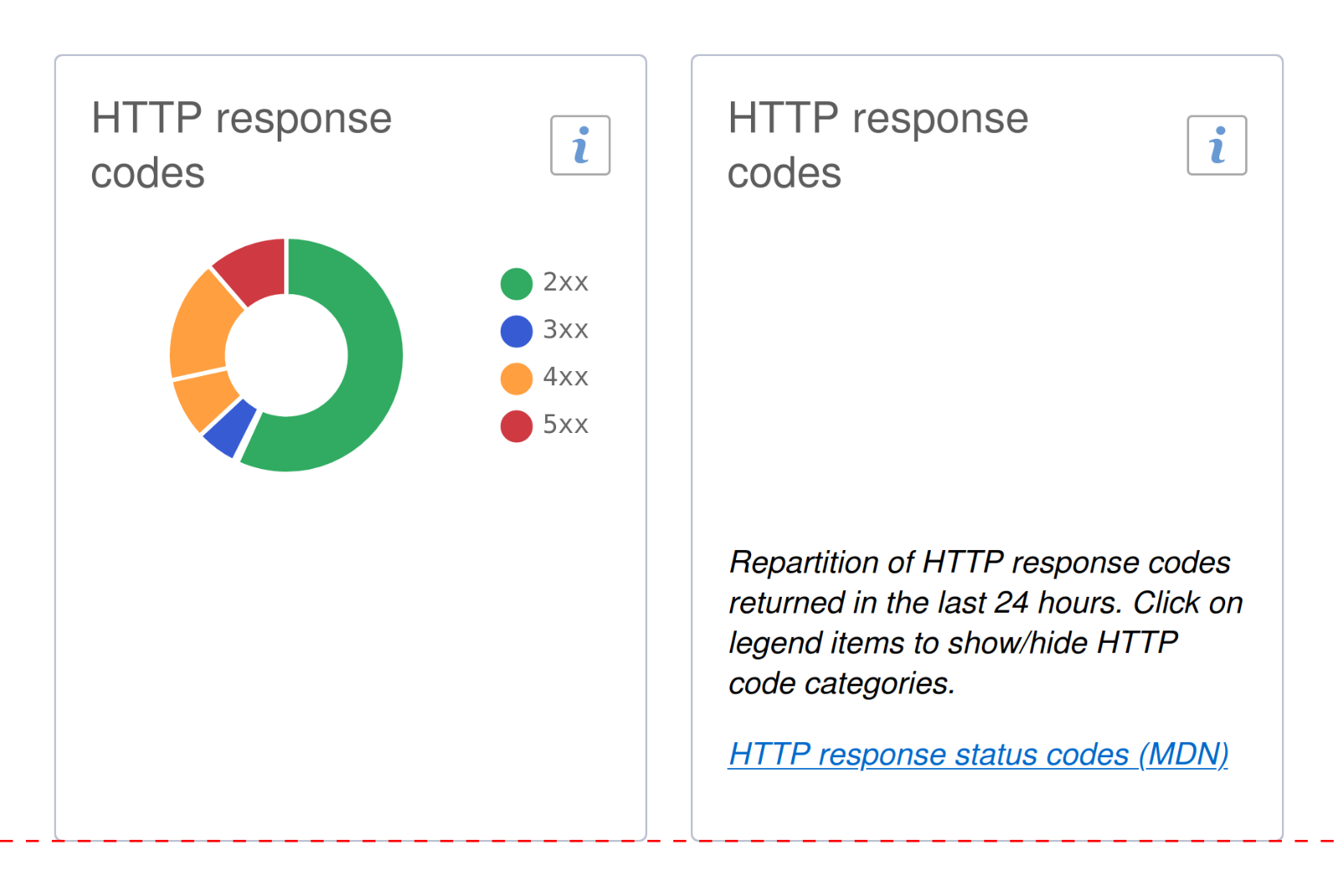

Two states of the same UI Component displayed side by side. Pie chart on the left, short text on the right.

As you can see, with visibility: hidden, the "inactive" panel is hidden but the component computes its own size as if both panels were there. Now, I have a component with a stable height, based on the heights of .chart and .info.

Then, I would use position: absolute on the .chart. Doing this will remove the element from normal flow. This means the component will compute its own size as if .chart was not there. Therefore, the component size would mostly depend on the size of .info, which is exactly what I want.

The only step left is to give .chart exactly the same position and size as .info. Using position: absolute means .chart will be positioned "relative to its closest positioned ancestor". That is, an ancestor with a position different from the default value (static). Most of the time, I use position: relative on the parent to trigger this. In this situation, I would need an additional .wrapper around both panels like this:

<div class="chart-component">
  <div class="title">
    HTTP response codes <button>toggle chart/info</button>
  </div>
  <div class="wrapper">
    <div class="chart">
      <!-- chart here -->
    </div>
    <div class="info">
      <!-- short text here -->
    </div>
  </div>
</div>

Now that I have this HTML, the CSS solution would look like this:

.wrapper {
  /* .wrapper is the closest positioned ancestor of .chart */
  position: relative;
}

.chart {
  /* .chart is removed from normal flow, therefore
     .wrapper has the exact same size (and position) as .info
     because .info is the only child left in the normal flow
     .chart is positioned relatively to .wrapper */
  position: absolute;
  /* same position as .wrapper (thus same position as .info) */
  left: 0;
  top: 0;
  /* same size as .wrapper (thus same size as .info) */
  height: 100%;
  width: 100%;
}

This position: absolute solution helps me achieve my goal. The size of my component will now always depend on the size of .info, even when it's hidden and .chart is visible.

🤔 No more layout shifts when I toggle between states but still a few limitations:

First, I had to add a .wrapper with a position: relative just so I could use position: absolute on .chart. CSS is awesome but it's also tricky to master. If you're still struggling with how the position CSS property works, this approach can be scary but don't worry:

Second, I had to assume the component size would only depend on .info. In more complex situations, I could have more than just two panels where I cannot assume which one should guide the size of the whole component.

Now, let's find out how grid can solve this better.

The grid solution

CSS grid are supported in all evergreen browsers now. This means we can rely on the fact that you can place and overlap multiple elements in the same grid area.

What do you mean by grid area?

If you're not familiar with CSS grid, before continuing this article, I would advise you to:

Now that you're more familiar with CSS grid, we can talk about the now famous "Anti Layout Shift Grid Stacking Technique" (sorry). Let's take the initial simple template we had earlier:

<div class="chart-component">
  <div class="title">
    HTTP response codes <button>toggle chart/info</button>
  </div>
  <div class="chart">
    <!-- chart here -->
  </div>
  <div class="info">
    <!-- short text here -->
  </div>
</div>

If we use CSS grid on .chart-component like this:

.chart-component {
  display: grid;
  gap: 1rem;
}

Our component looks like this:

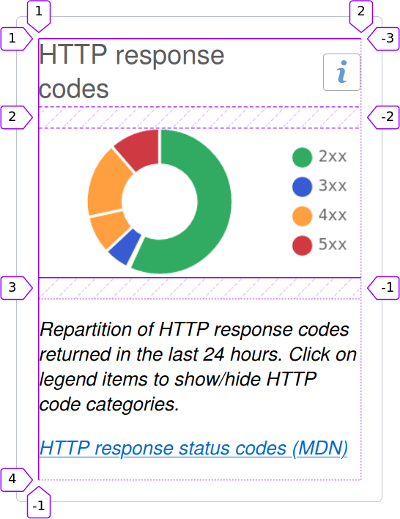

UI Component displaying the pie chart and short text states in a one column grid with Firefox CSS grid inspector

Thanks to the awesome CSS Grid Inspector from Firefox DevTools, we have annotations for columns and rows. We can see that:

This is the default behaviour in a simple 1 column grid: children are placed in order. With grid-column and grid-row, we can force an element to be placed in a specific area of the grid.

For example, if we place our two elements in the same area like this:

.chart,
.info {
  grid-column: 1 / 2;
  grid-row: 2 / 3;
}

The result looks like this:

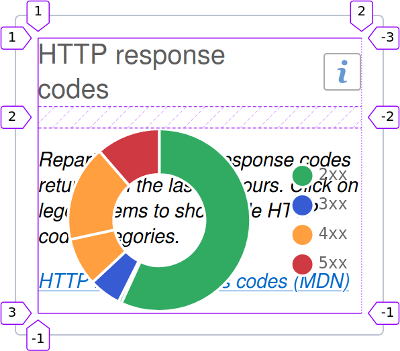

UI Component displaying the pie chart and short text states on top of each other with Firefox CSS grid inspector

If you are sceptical, remember the appropriate panel will be hidden with a visibility: hidden.

With this technique, we actually told the CSS engine to prepare a grid where the area at column 1 / 2 and row 2 / 3 should adapt to what's inside. In other words: this very area will always be as big as the biggest between .chart and .info. Therefore, the height of the whole component will be the same when toggling between states.

😎 No more layout shifts!

Compared to the absolute position solution, we improved the situation:

Now, as a bonus, let me show you another real example where I used this technique.

Preventing horizontal shifts

The previous example was about the height of a component but you can also use this technique with width. If you give another look at the Clever Cloud console overview, in the top right corner, you'll notice a few buttons to control your app's state.

Screenshot of Clever Cloud's Web console displaying the overview of a Node.js application

The "Stop app" button has bigger horizontal paddings than the other buttons. This is because, when clicking this very button, the text is replaced with "Click to cancel" for 3 seconds in case you panick changed your mind.

If we didn't use the grid technique; when the button changes its text from "Stop app" to "Click to cancel", the width change would move all the other buttons like this:

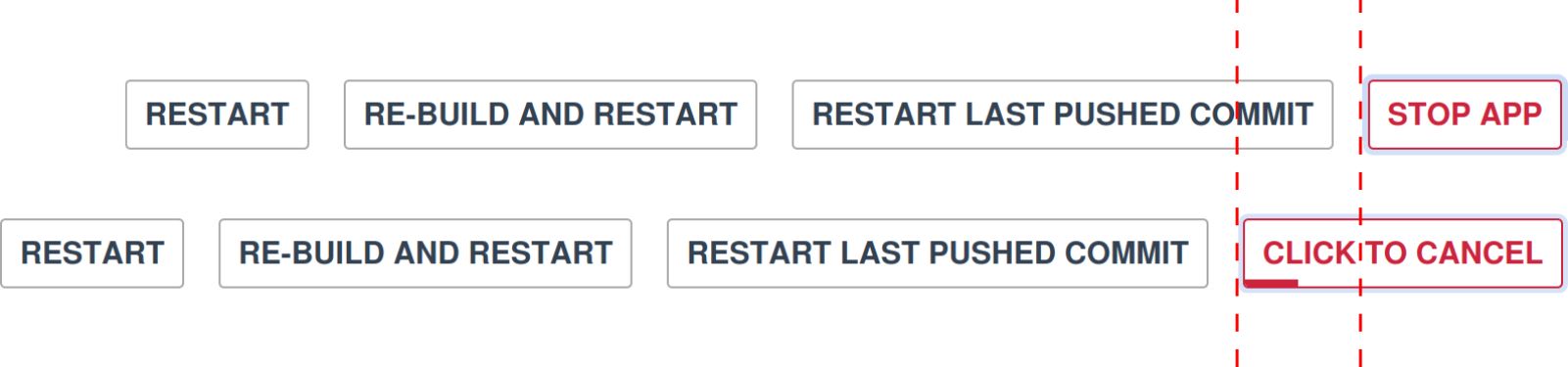

Two lines of four buttons next to each other with different widths

On narrow screens, the wrapping of the buttons could trigger a bigger layout shift like this:

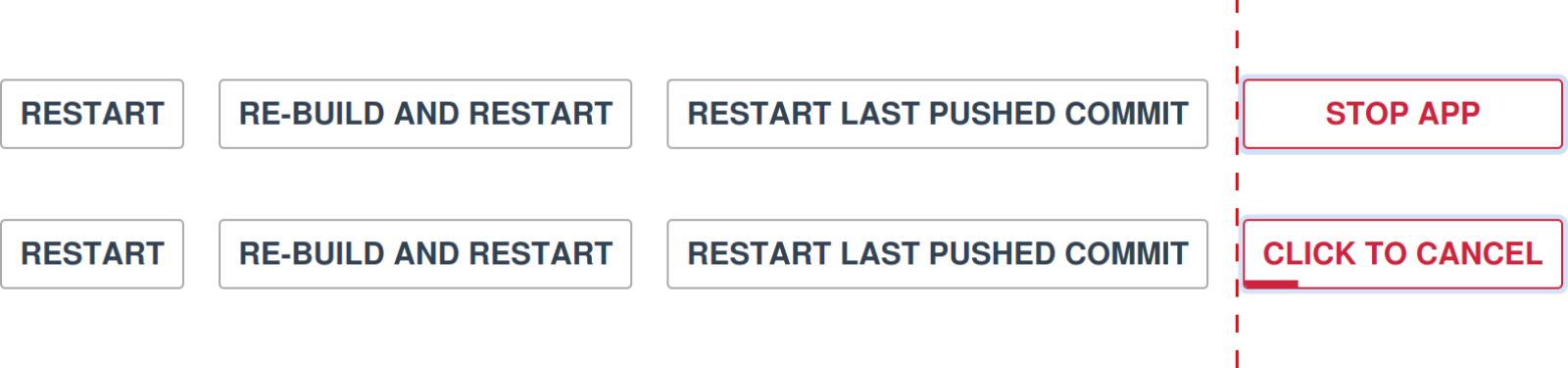

Thanks to the "Anti Layout Shift Grid Stacking Technique" (please send naming suggestions, I'm dying), no need to assume which state will be larger. Whatever the lengths of the normal text and the cancel text are, the button will always be big enough.

Two lines of four buttons next to each other with the same widths

😎 No more layout shifts!

I hope this article helped you consider this kind of layout shifts as a potential problem to solve. I also hope you'll find this technique useful in your own projects.
